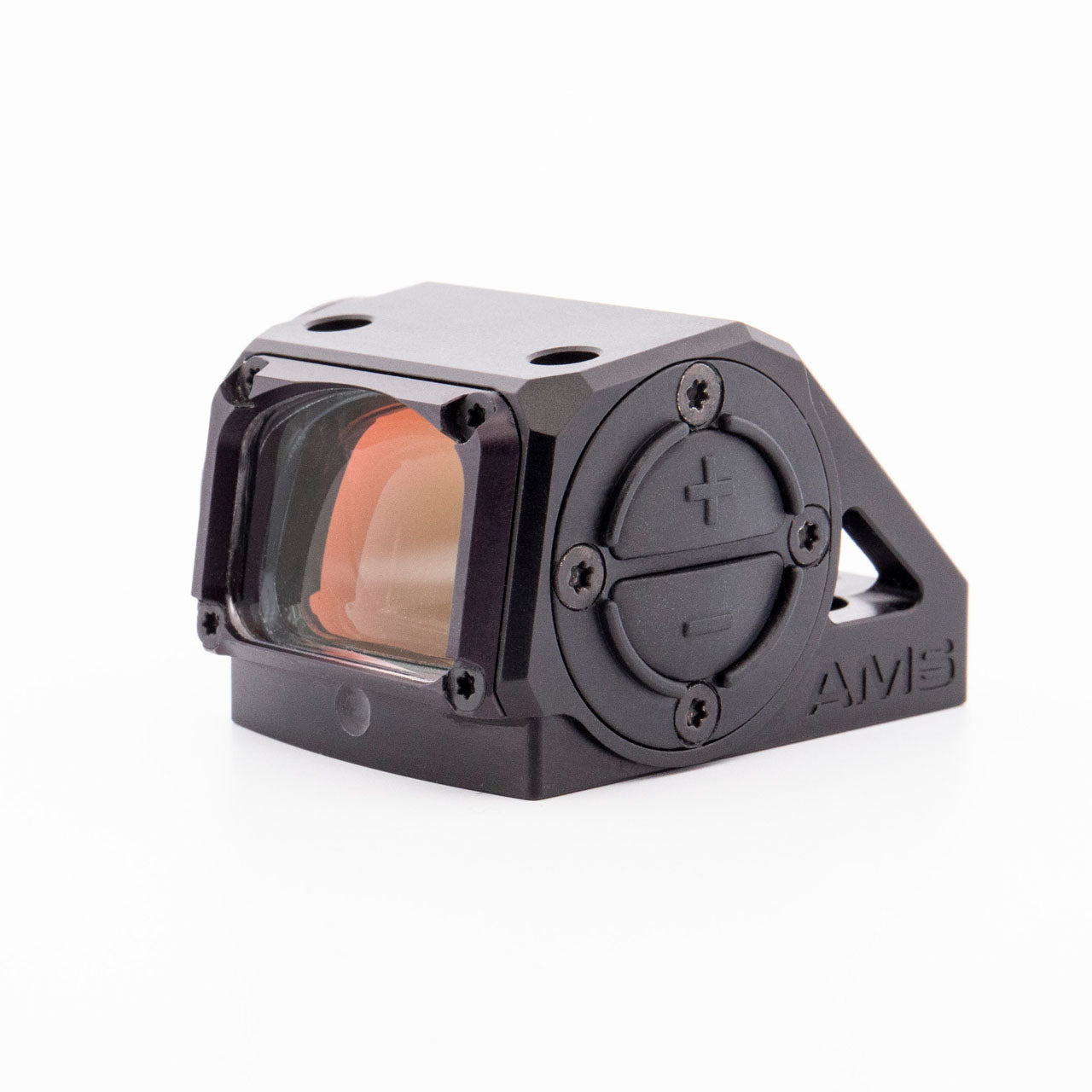

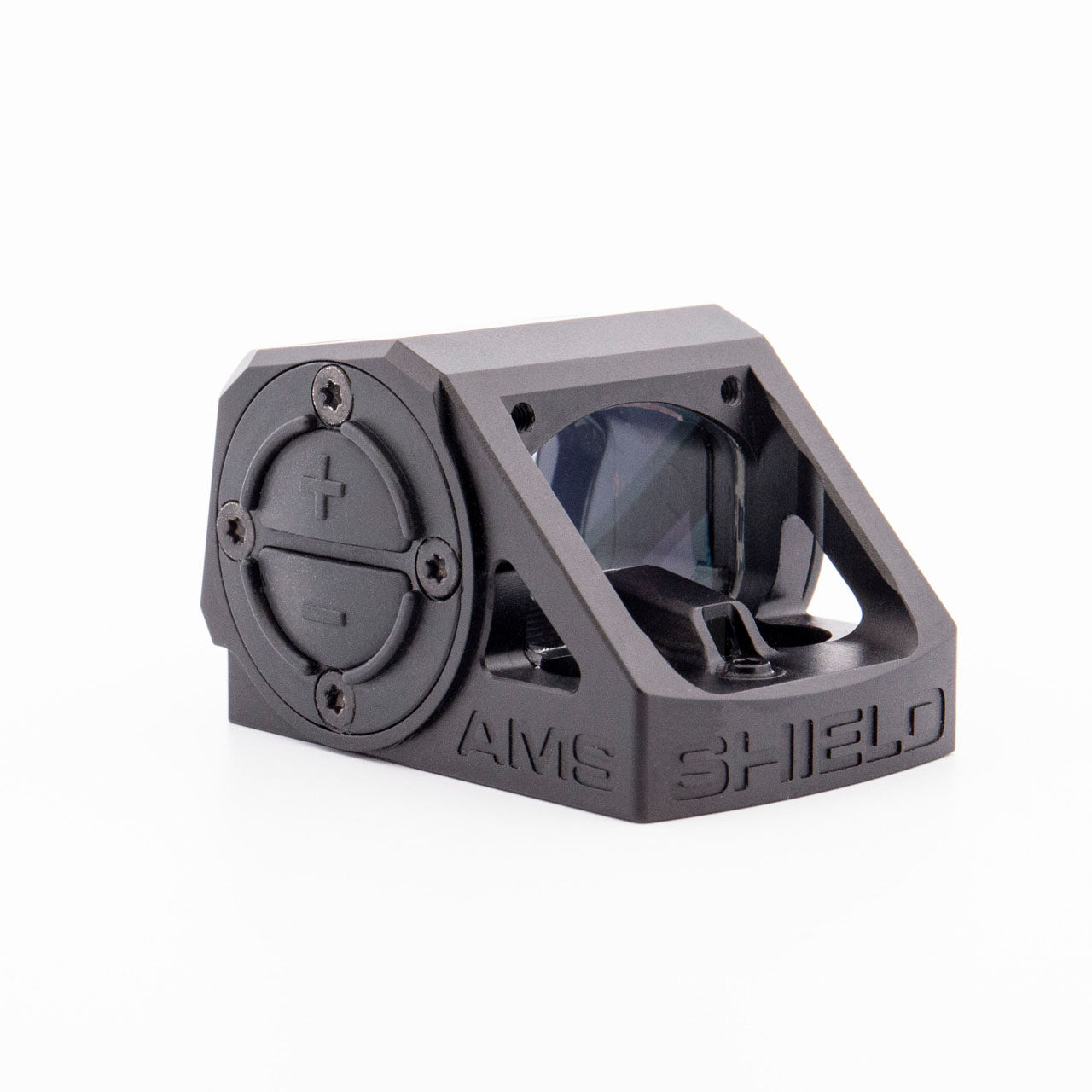

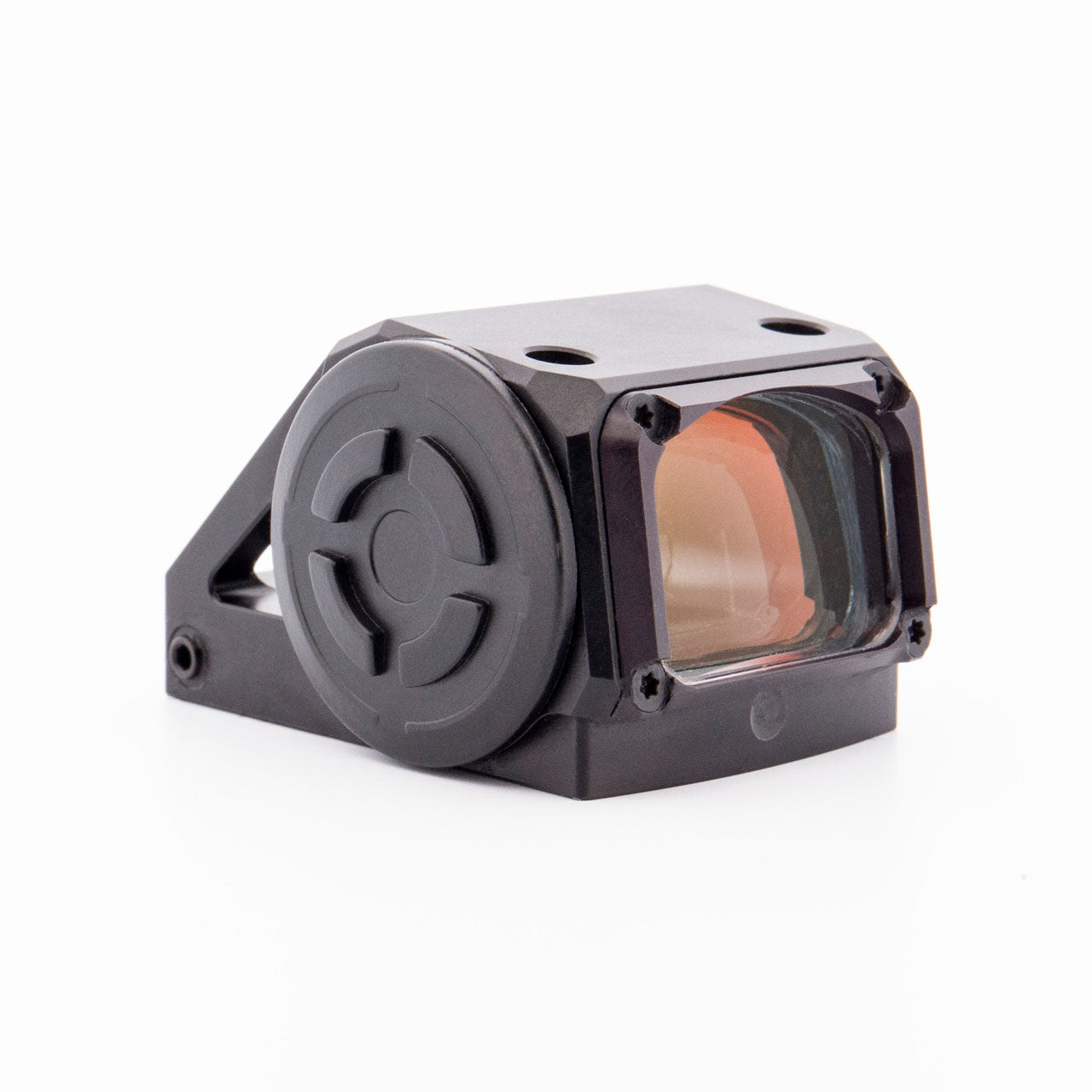

Shield Sights AMS-MR - Advanced Mini Sight (Multi Reticle)

AMS-MR (Multi Reticle), the next evolution in advanced optics from SHIELD.

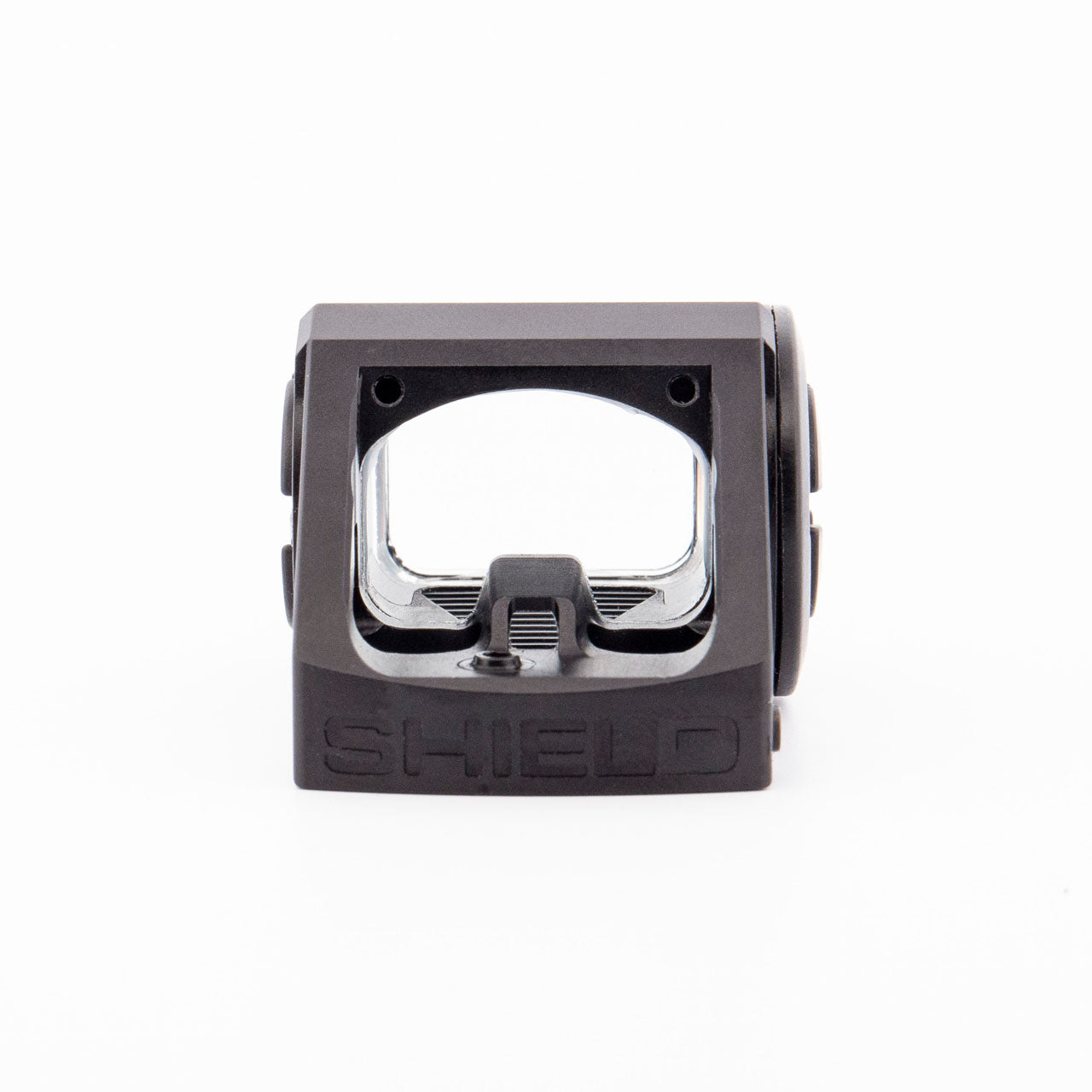

Combining cutting-edge design with unparalleled functionality, the AMS-MR features a patented mechanism that allows for seamless co-witnessing with standard iron sights, reducing both training time and costs. Its crystal-clear, filter-free lens offers an unobstructed view of the world, while the lightweight, aerospace-grade aluminum construction ensures both durability and precision. Weighing just 35.9 g, it’s the smallest and lightest sight in its class.

With a 12-stage manual brightness adjustment, intelligent on/off functionality, and 6 switchable reticle options, the AMS-MR is designed for both versatility and ease of use in any environment. Built for the modern shooter, this sight also boasts exceptional battery life, submersible housing, and industry-first compatibility with our standard SHIELD footprint. Whether you’re in the field or on the range, the AMS-MR is ready to perform.

TECHNICAL SPECIFICATIONS

OPTICAL CHARACTERISTICS
• Light Source: Red light emitting diode (LED). No laser; completely eye safe. No radioactive materials.
• Red Dot Size: AMS-MR (Multi-Reticle Version 2MOA, 2MOA + 65MOA Ring, 8MOA, 8MOA + 65MOA Ring, 8MOA Horseshoe, and 8MOA Horseshoe and 65MOA Ring).

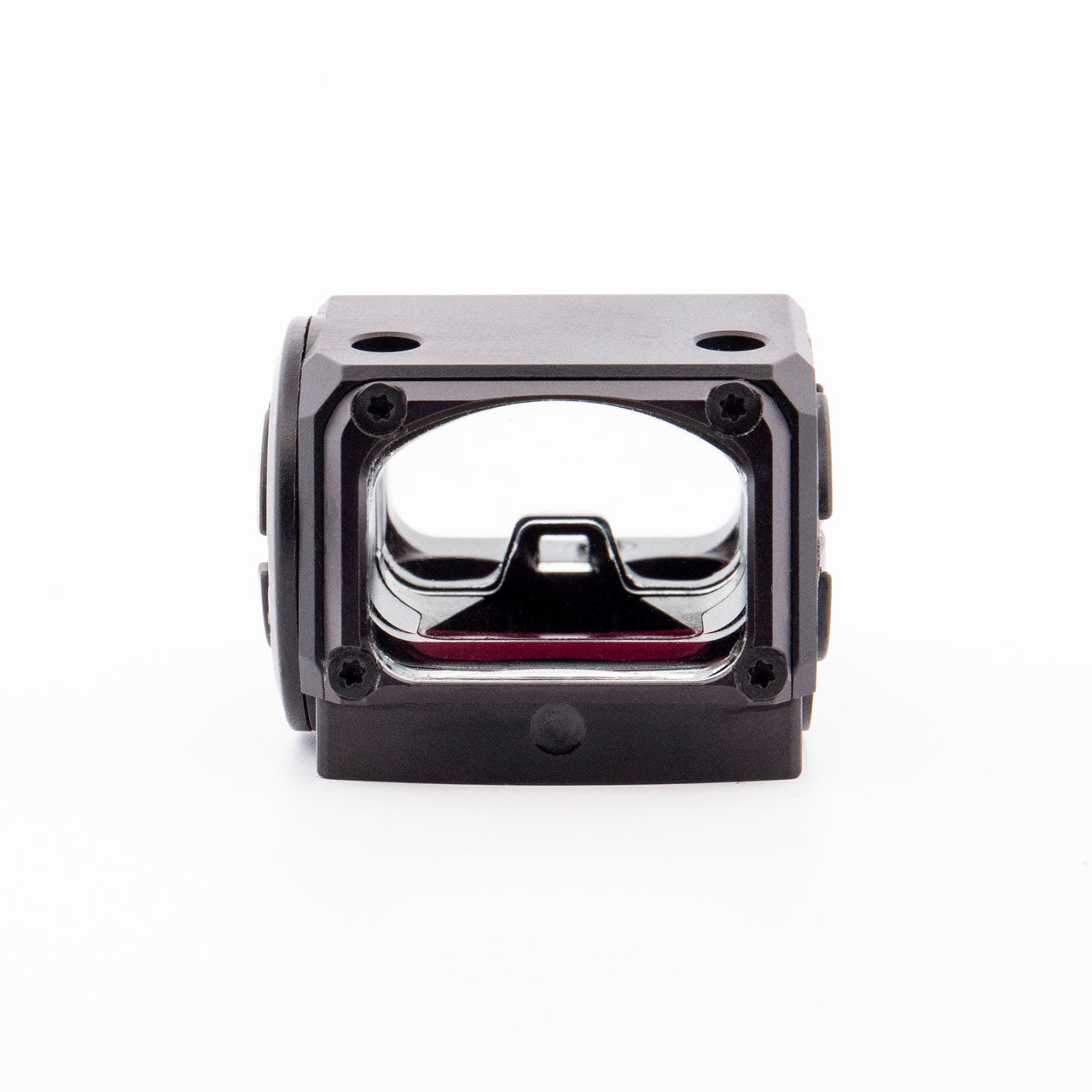

• Lens: Large, crystal-clear glass lens with no filters to disturb the image of the world through the sight.
• Lens Coating: Anti-reflective, color-free coating minimizes visible signature.

ELECTRONICS
• Battery: One 3V lithium metal battery - CR2025, CR2032, or CR2050. Multiple size battery caps for extra concealability or battery life.
• Battery Life: 20,000 hours in average daylight with a CR2032.

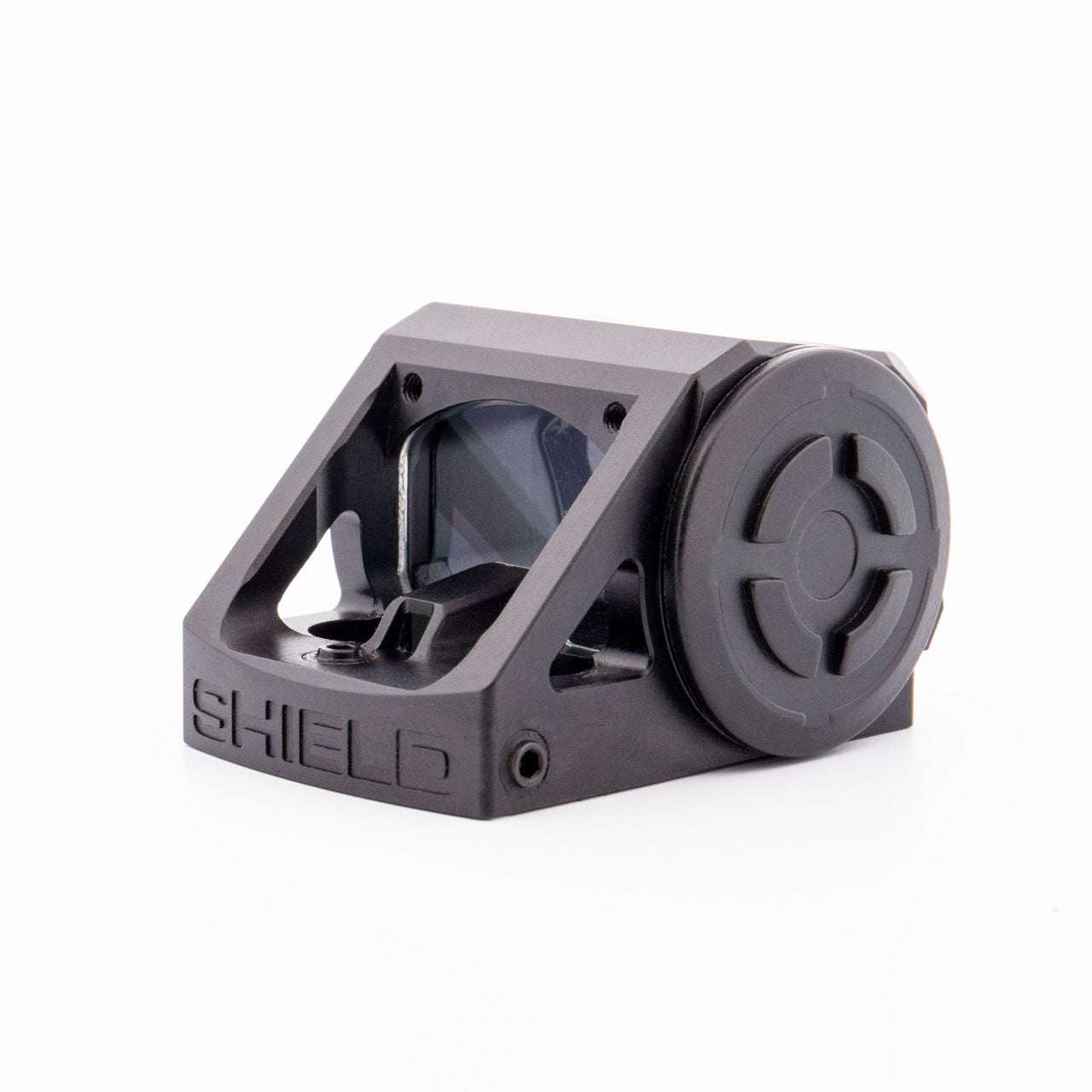

• Battery Fitting: Side mounting battery

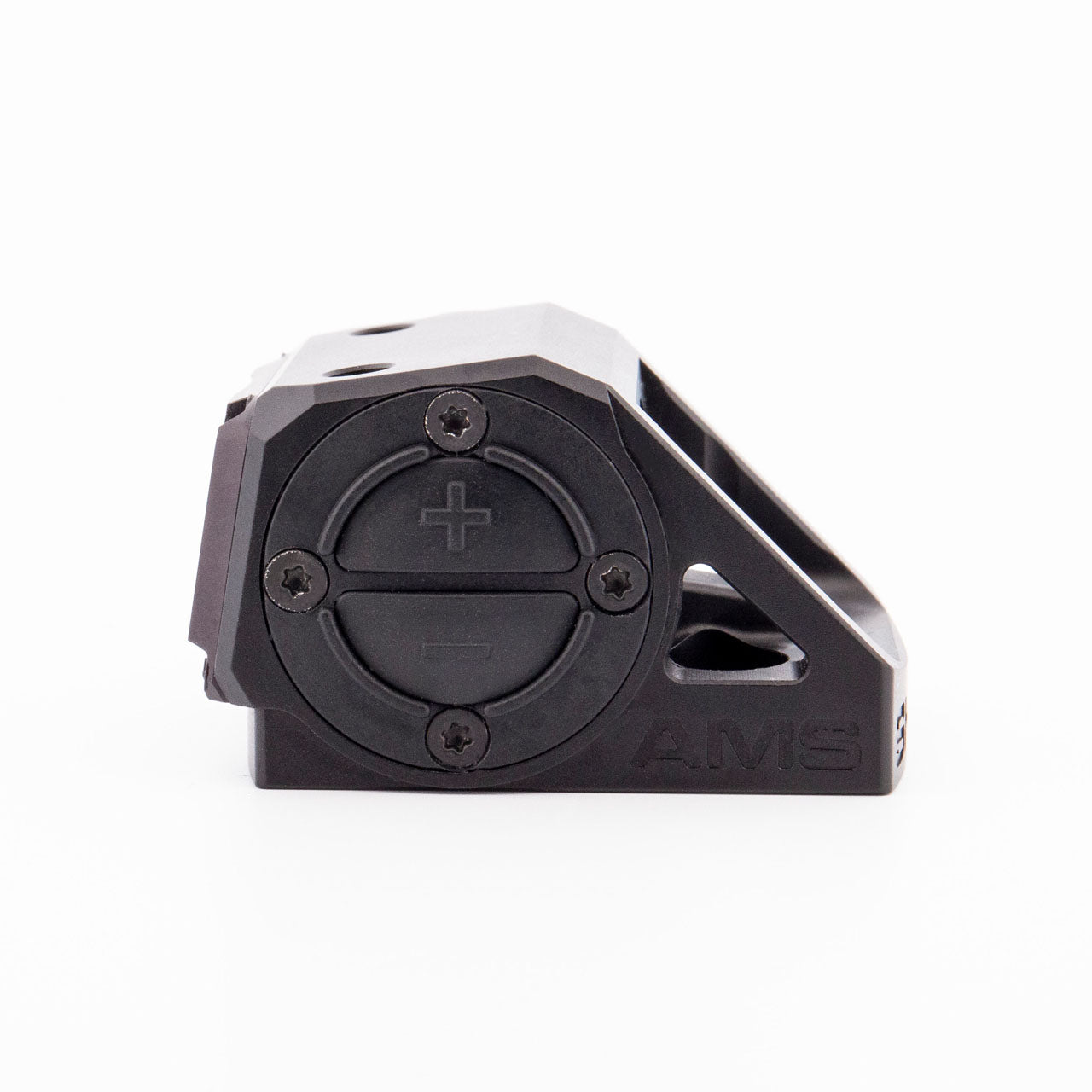

• Brightness Adjustment: 12-level manual.
• Brightness Range:
      • Lowest: Compatible with Night Vision.
      • Highest: Visible against the sky in bright daylight.

EXTERIOR
• Housing Material: Anodized aerospace-grade aluminum (6082 T6).
• Color: Matte black.
• Dimensions: Sight with 2025 battery and cap (L x W x H): 40.8 mm x 33 mm x 25.4 mm (1.65” x 1.3” x 1”).
Sight with 2032 battery and cap (L x W x H): 40.8 mm x 34 mm x 25.4 mm (1.65” x 1.35” x 1”).
Sight with 2050 battery and cap (L x W x H): 40.8 mm x 35.5 mm x 25.4 mm (1.65” x 1.4” x 1”).

• Weight: 35.9 grams / 1.2 ounces (excluding battery).
• Mount: The SHIELD footprint – more than 100 mounting solutions.
• Water Immersion: 30 feet for 30 minutes (IP68).

Its origins are born from two of our existing products, both tested in the military and carrying NSN numbers after meeting DEFSTAN International requirements: SIS (NSN-1240-99-176-8362) and RMSw (NSN-1240-99-490-5863).
